Strip Width, Overlap & Material: How to Spec a PVC Strip Door That Actually Seals

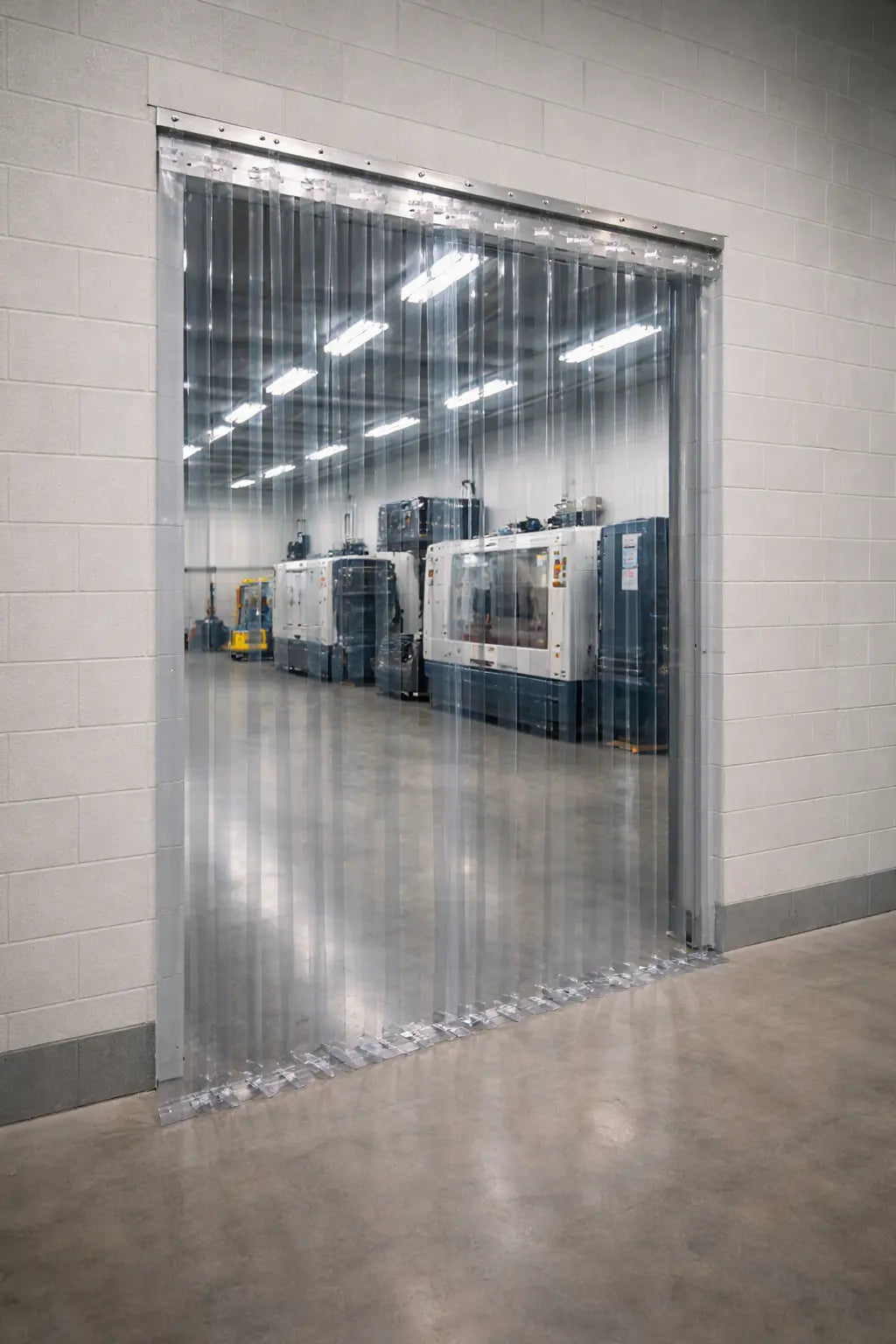

Industrial PVC strip doors — also called PVC strip curtains or warehouse strip doors — are one of the most cost-effective ways to control temperature, dust, insects, and traffic flow in a commercial or industrial facility. They're also one of the easiest products to spec incorrectly.
An improperly sized strip door can increase air infiltration at warehouse and dock openings, especially where there's forklift traffic or wind exposure. Get the strip width, overlap percentage, and material grade right and the door pays for itself in energy savings. Get them wrong and you end up with:
- Energy loss and higher HVAC costs
- Premature wear and curling
- Poor sealing performance
- Reduced forklift visibility
This guide walks through the four decisions that determine how a PVC strip door performs: strip width, overlap, material type, and the traffic and environment it has to survive.
Step 1: Match Strip Width to Opening Height
Opening height determines the weight, stability, and performance of the strips. This is the foundation of long-term performance — everything else builds on it.
| Opening Height | Recommended PVC Strip Width |
|---|---|
| 0'–8' high | 8" wide strips |
| 8'–14' high | 12" wide strips |
| 14'–20' high | 16" wide strips |
| 20' and higher | 16" wide reinforced strips |
Why Strip Width Matters
Narrow strips on a tall opening sway excessively, separate under moderate air pressure, lose their temperature seal, and wear out faster. Wider strips give you better wind resistance, greater durability, and improved energy retention — which is why the recommendation scales with height rather than with budget.
Step 2: Choose the Correct Overlap
Overlap determines how tightly the curtain seals. The tradeoff is simple: more overlap means a stronger environmental barrier, less overlap means easier traffic flow. The more extreme the environment, the higher the overlap required.
| Application | Overlap | Recommended Material | Why |
|---|---|---|---|
| Pedestrian traffic | 25–50% | Standard clear PVC | Easier pass-through access |
| Forklift traffic | 33–66% | Bi-ribbed | Reduces surface scratching after repeated impacts |
| Exterior openings | 66–100% | Reinforced | Handles wind pressure and weather exposure |
| Cold storage & freezer | 75–100% | Low-temp or extra low-temp | Maintains flexibility in low-temp environments |
Step 3: Select the Right Material Grade
Industrial PVC strip doors come in several material grades. Matching the grade to the environment is what separates a door that lasts five years from one that curls and clouds over in one.
Standard Clear PVC
Best for interior warehouse openings, manufacturing facilities, dust and insect control, and temperature zone separation.
Low-Temperature PVC
Best for walk-in coolers, refrigerated docks, freezer openings, and food distribution facilities. Low-temp PVC stays flexible in freezing temperatures, which prevents cracking and condensation, and helps reduce thermal loss when paired with heavier overlap.
Reinforced PVC
Best for exterior warehouse openings, high-wind applications, tall openings, and high-cycle traffic. Reinforced strips resist stretching, curling, and deformation.
Bi-Ribbed PVC
Best for high-impact environments, heavy forklift or cart traffic, and anywhere durability is the priority. Forks and carts hit the raised ribs first, which protects the flat surface of the strip and preserves visibility — durability without giving up clarity.
Step 4: Evaluate Traffic & Environment
Before you order, work through these five questions. They're the same ones we ask before quoting:
- Pedestrian, pallet jack, or forklift traffic?
- Interior or exterior opening?
- Opening width and height?
- Temperature-controlled space, cooler, or freezer?
- Wind exposure and frequency of use?
Quick Selection Guide
If you only take one table from this guide, take this one.
| Application | Strip Width | Overlap | Material Type |
|---|---|---|---|
| Pedestrian or under 8' | 8" | 25–50% | Standard clear |
| Forklift / warehouse | 12" | 33–66% | Bi-ribbed |
| Exterior dock | 12–16" | 66–100% | Bi-ribbed or reinforced |
| Freezer / cooler | 12–16" | 75–100% | Low-temp or extra low-temp |
Five Common Mistakes When Ordering Strip Doors
Even with accurate measurements, these are the errors we see most often:
- Choosing narrow strips for tall openings
- Using standard PVC in freezer environments
- Underlapping strips in exterior dock openings
- Ignoring wind pressure at loading docks
- Failing to confirm the mounting style before ordering
That last one causes more reorders than anything else. Our site survey guides cover what to capture, and our site survey article explains why accurate measurements matter on every industrial door.
Energy Efficiency & Cost Savings
In high-cycle warehouse environments, properly overlapped strip curtains can significantly reduce air infiltration while keeping traffic moving. A correctly specified strip door helps:
- Reduce HVAC loss
- Improve refrigeration efficiency
- Lower energy bills
- Minimize dust contamination
- Improve safety visibility at blind openings
Underlapping strips increases energy costs. Overlapping excessively slows traffic. The goal is operational balance — which is why overlap is a decision, not a default.
Is a Strip Door the Right Product for Your Opening?
Strip doors are the right call when traffic is continuous and you need pass-through access all day without operating a door. They aren't always the right answer:
- When the opening needs to fully close and seal for security, weather, or after-hours protection, a vinyl roll-up door is the better fit.
- When the opening stays open for ventilation and insects are the primary concern, a bug screen roll-up door with insect mesh is the stronger solution.
- At the dock face itself, dock seals and dock shelters close the gap between the trailer and the building.
Many facilities use a combination — a strip door on the interior cooler opening, a roll-up at the exterior bay, and a dock seal at the trailer.
Why Order PVC Strip Doors from SB3 Doors
- All PVC strip curtain doors are manufactured in the USA
- Custom cut to your exact opening size
- Industrial mounting hardware included
- Reinforced and low-temperature options available
- Built for commercial and warehouse environments
Before we quote, we confirm mounting type (face-of-wall or between-jamb), exact opening dimensions, traffic type, environmental exposure, and clearance requirements — so what shows up on your dock fits the opening it was ordered for.
Frequently Asked Questions
What width PVC strip should I use for a 12-foot opening?
12" strips are typically recommended for openings 8–14 feet high. They provide the stability and sealing performance that 8" strips lose at that height.
How much overlap do I need for forklift traffic?
33–66% overlap, with bi-ribbed material recommended. The ribs absorb fork and cart contact so the strips stay clear longer.
Do PVC strip curtains work in freezer environments?
Yes, but low-temp or extra low-temp material is required. Standard clear PVC becomes brittle and cracks at freezer temperatures.
What is the lifespan of an industrial PVC strip door?
It depends on traffic volume and environment. Reinforced and bi-ribbed strips extend service life considerably in high-impact openings, and individual strips can be replaced without replacing the whole curtain.
How are strip doors mounted?
Face-of-wall or between-jamb, depending on the surface available above and around your opening. Our mounting option guide covers how mounting style affects clear opening dimensions.
How fast can I get a strip door?
Many standard configurations ship within 3–5 business days. Custom sizes vary — tell us your deadline when you request a quote and we'll confirm timing.
